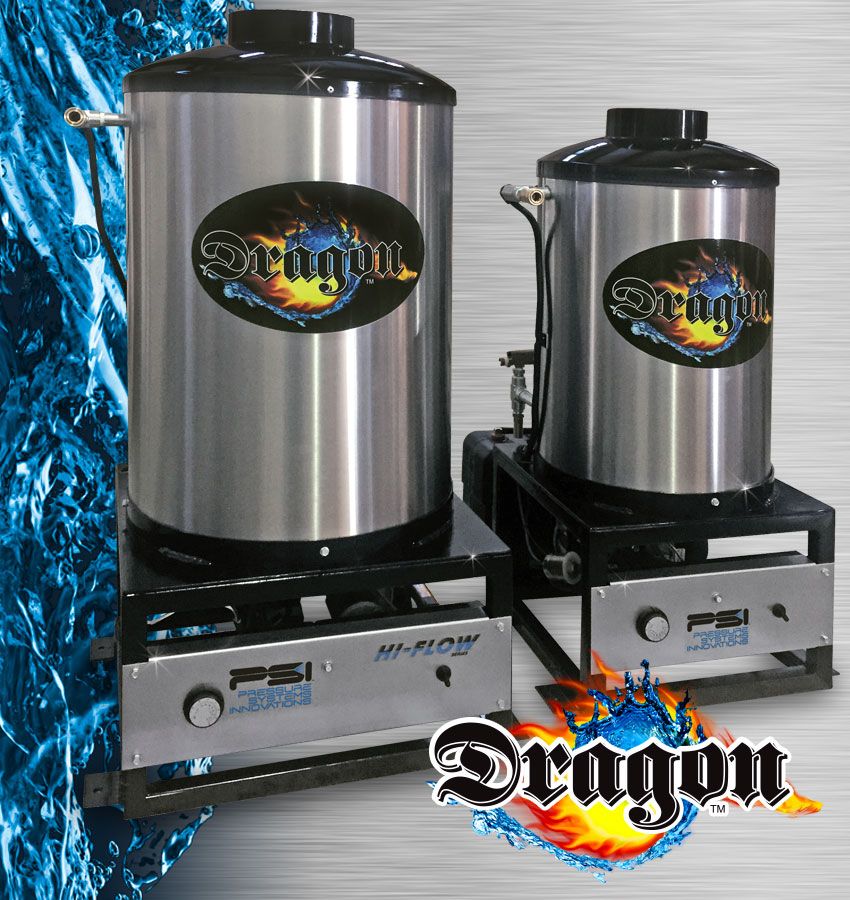

DRAGON HOT BOX SERIES Hot Water Attachments
$2 999.89
Pre-order
Dragon Hot Box Series Specifications
Please choose
Out of stock, available for pre-order
Product Details
- Designed to connect to an existing pressure washer to make any cold water system transform into a complete hot water unit
- Top-to-bottom schedule 80 coil for maximum temperature rise
- Stainless coil wrap and control panel
- Safety pressure relief valve
- Flow switch
- Adjustable thermostat temperature control
- Beckett burner
- Powder coated steel frame
- Poly 6-gallon diesel/kerosene fuel tank
- Fuel filter
- 12 volt leads or 120 volt GFCI cord
-
Dragon Hot Box Series Specifications
MODEL PSI GPM BURNER VOLTS BTU DIMENSIONS UNIT WEIGHT D-HB40 4000 4.0 ADC 12 280,000 17"x21"x40" 225 lbs. D-HB40-AC 4000 4.0 ADC 120 280,000 17"x21"x40" 225 lbs. D-HB50 4000 5.0 ADC 12 350,000 17"x21"x40" 230 lbs. D-HB50-AC 4000 5.0 ADC 120 350,000 17"x21"x40" 230 lbs. D-HB80 4000 8.0 ADC 12 420,000 21"x26"x46" 375 lbs. D-HB80-AC 4000 8.0 ADC 120 420,000 21"x26"x46" 375 lbs. D-HB100 4000 10.0 SDC 12 455,000 21"x26"x46" 385 lbs. D-HB100-AC 4000 10.0 SDC 120 455,000 21"x26"x46" 385 lbs.
DRAGON HOT BOX SERIES Hot Water Attachments
